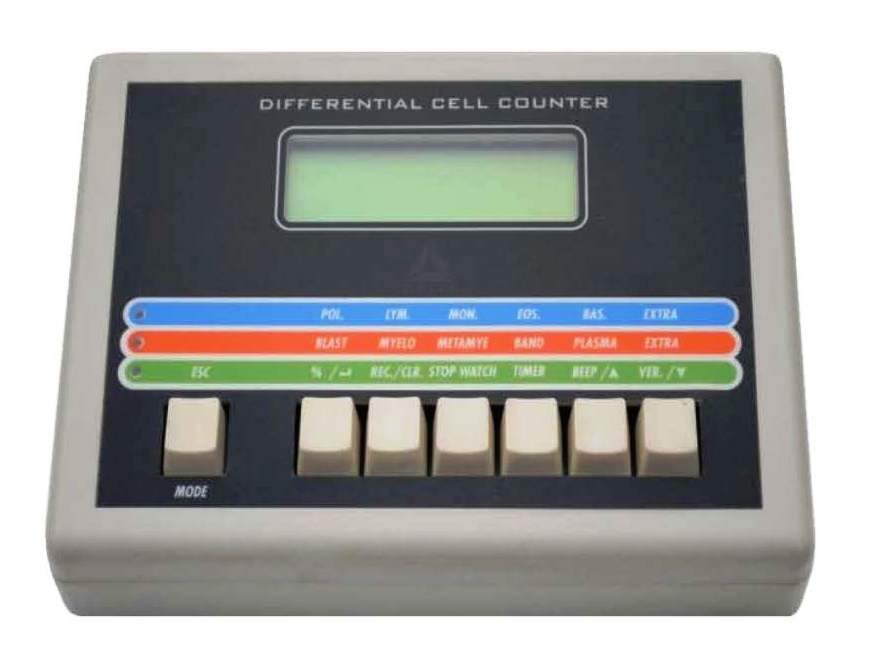

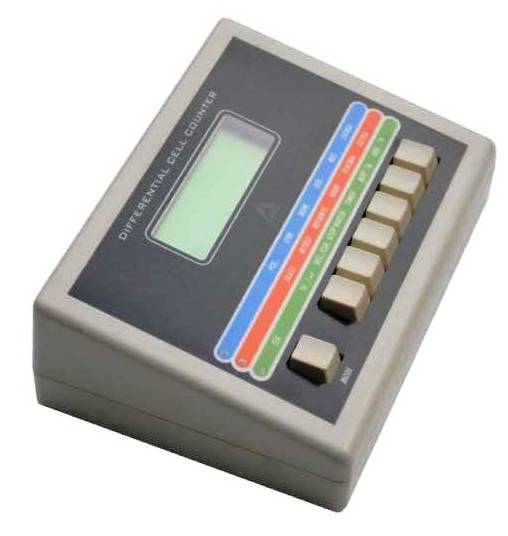

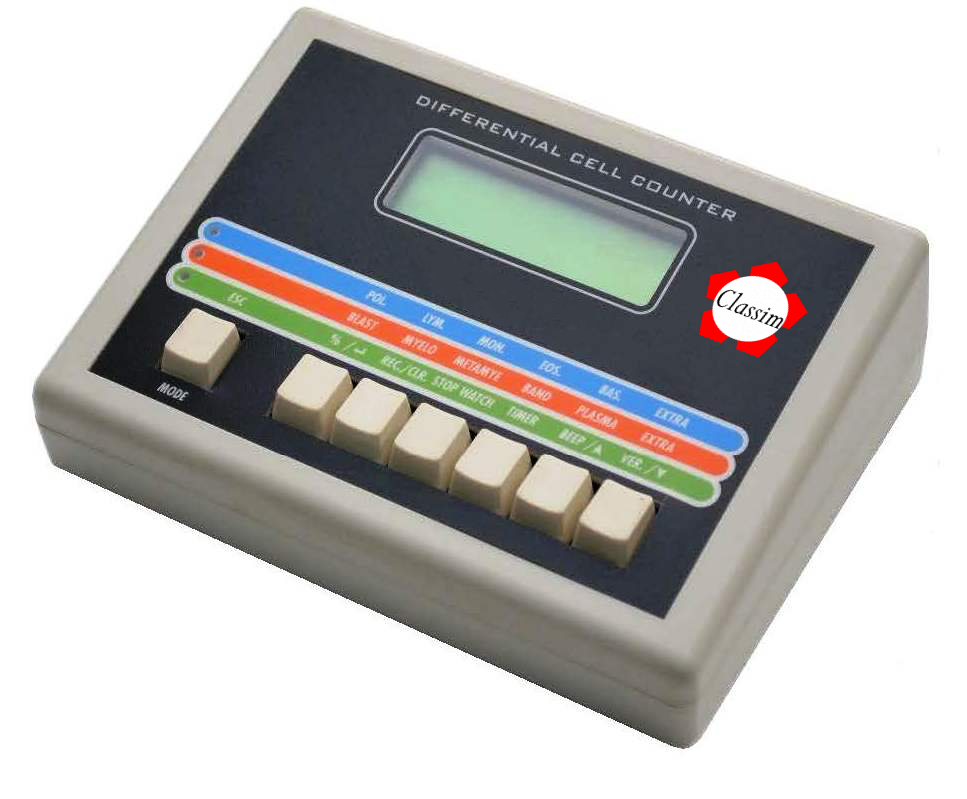

Differential Cell Counter
₹6000.00
Automation | Manual |
Brand | Classim |
Differential Type | 5-Part |
Model Name/Number | uDCC-100 |
Weight | 1 kg |
Voltage | 12 / 9 V DC |
Material | ABS |
Display Type | LCD 20 x 4 line |
Display Size | 20 X 4 Character |
Dimensions | 18.5 W X 13 L X 5 H cm |
Country of Origin | Made in India |
It is designed for use in hematology laboratories, to calculate percent & absolute WBC values with a feature of alert activated at every 100 counts.
Differential Cell Counter (μDCC-100) is designed for use in hematology laboratories, these microcontroller based differential cell counters calculate percent and absolute WBC values with a feature of alert activated at every 100 counts with an option of 100 count lockout. Channels are displayed simultaneously on a bright backlit LCD screen. The counter is available in 6 cell count key model and counts up to 12 cell particles under normal and abnormal cell category.
Total 12 types of cell particles can be counted under Normal Abnormal category viz; Normal Cell particles: Poly, Lympho, Mono, Eos, Bas and extra (User defined). Abnormal Cell particles: Blast, Myelo, Metamye, Band, Plasma and extra (User defined).
Data storage memory of 500 test result.
Stored test result can be deleted individually or all at a time.
Maximum limit of Stop watch and Countdown timer can be set up to 99 hrs 59min 59 sec.
Total 999 counts can be entered with a long beep audio signal at every 100 counts.
Big 20X4 Character LCD with back light.
Adjustable key stroke timing for fast performance of counting, allowing highest accuracy during operation.
Seven keys operation. (1 key for MODE selection and 6 keys for counting and other operational functions.)
Premium quality and long life computer keyboard switches allows users to gain highest operating speed with least error.
Push button ON/OFF.

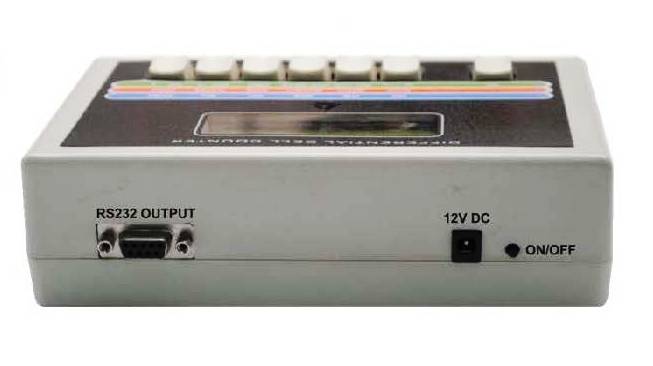

RS232 output for computer connectivity or external thermal recorder.
